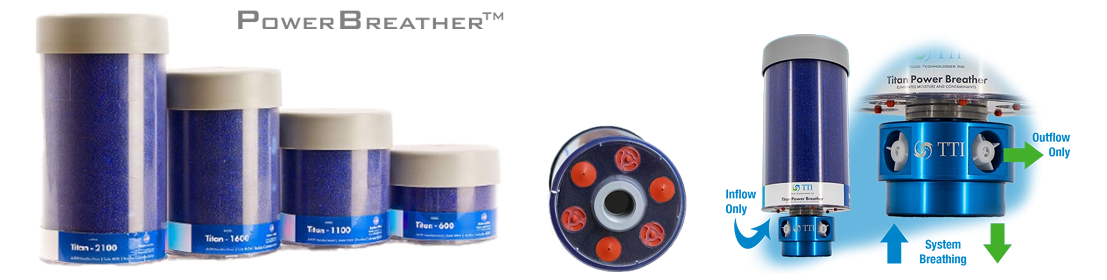

TTI Titan PowerBreatherTM

High flow, extended life PowerBreathers™️ are ideal for tank farms and large applications and can prevent damage to the hydraulic components of equipment. Options include: standard check-valve technology, SmartFlow™ technology, and no check-valve option for extreme flow applications. These breather designs are great for all types of manufacturing equipment, in all types of environments and application requirements.

High flow, extended life PowerBreathers™ are ideal for tank farms and large applications and can prevent damage to
the hydraulic components of equipment. Options include: standard check-valve technology, SmartFlow™ technology,
and no check-valve option for extreme flow applications. These breather designs are great for all types of
manufacturing equipment, in all types of environments and application requirements.

Dimensions and Specifications

The Standard check-valve hydraulic reservoir Titan PowerBreatherTM model offers protection from ambient humidity in
intermittent operations.

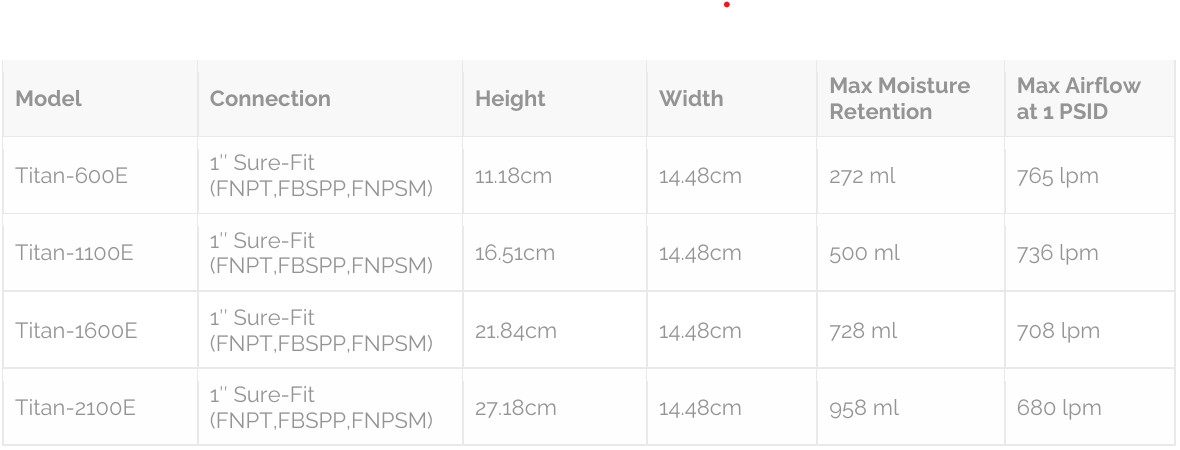

Standard Titan PowerBreatherTM serie

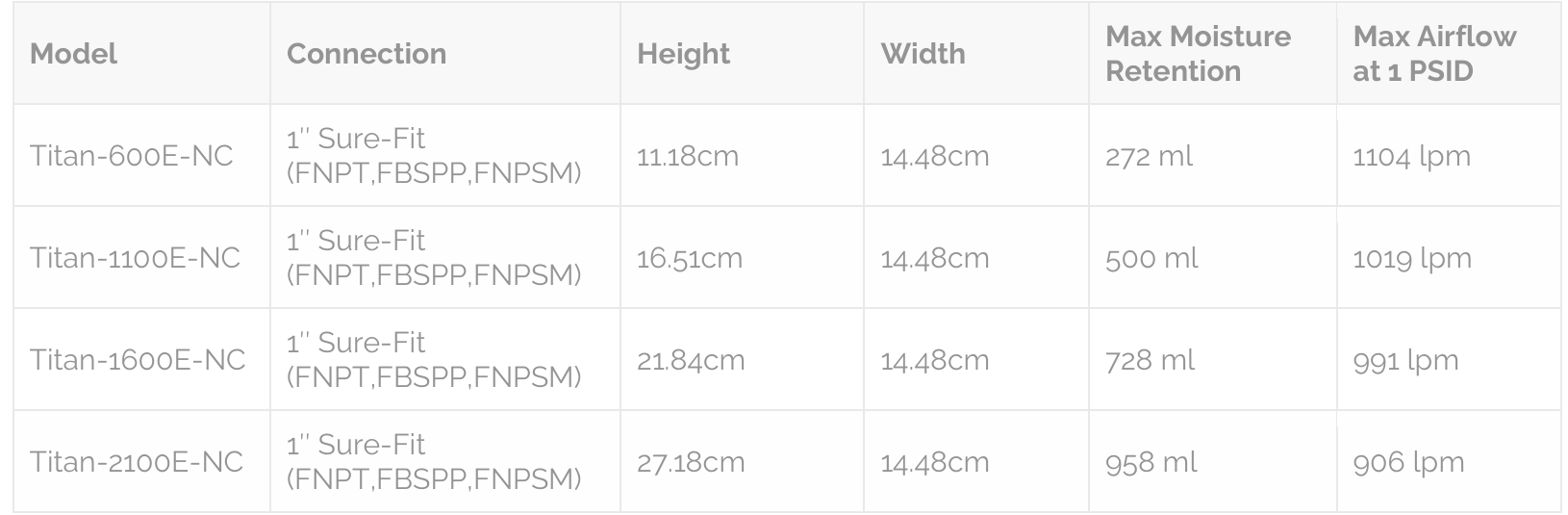

The no check-valve reservoir Titan PowerBreatherTM model offers extremely high flows at reduced pressure drops for
large applications.
No Check-Valve Titan PowerBreatherTM serie

The Standard Titan PowerBreatherTM serie breathers identical in width, offers wider range connection and almost
match in height are fully compatible replacement retro-fit for the DES-CASE® Extended serie breathers, i.e.
DC-EX-1 (TTI-Titan-600E), DC-EX-2 (TTI-Titan-110E), DC-EX-3 (TTI-Titan-1600E) and DC-EX-4 (TTI - Titan-2100E)
Multiple head-to-head tests demonstrate that TTI PowerBreather Silica Gel averages nearly 20% more moisture
holding capacity than other leading brands.
Titan SmartFlowTM Model

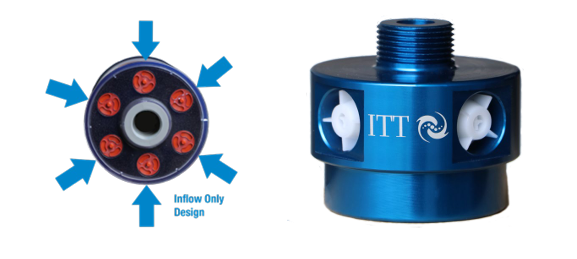

The SmartFlow™ adapter has a quintessential air flow design, allowing for exhaust of the outflow air prior to entering
the reservoir breather. This protects the filter from oil mist and system humidity, resulting in longer breather life.

Titan SmartFlowTM PowerBreathersTM consist of all
check valves positioned inward to exclusively inhale
from the atmosphere, therefore must be used with the
Titan-SF-A1 (1″ FNPT) or Titan-SF-A2 (2″ FNPT)
SmartFlowTM Adapters to exhale all air out of the
system.
Titan-SF-A1 (1″ FNPT) and Titan-SF-A2 (2″ FNPT) add
2.2 inches of height to SF Model Titan PowerBreatherTM

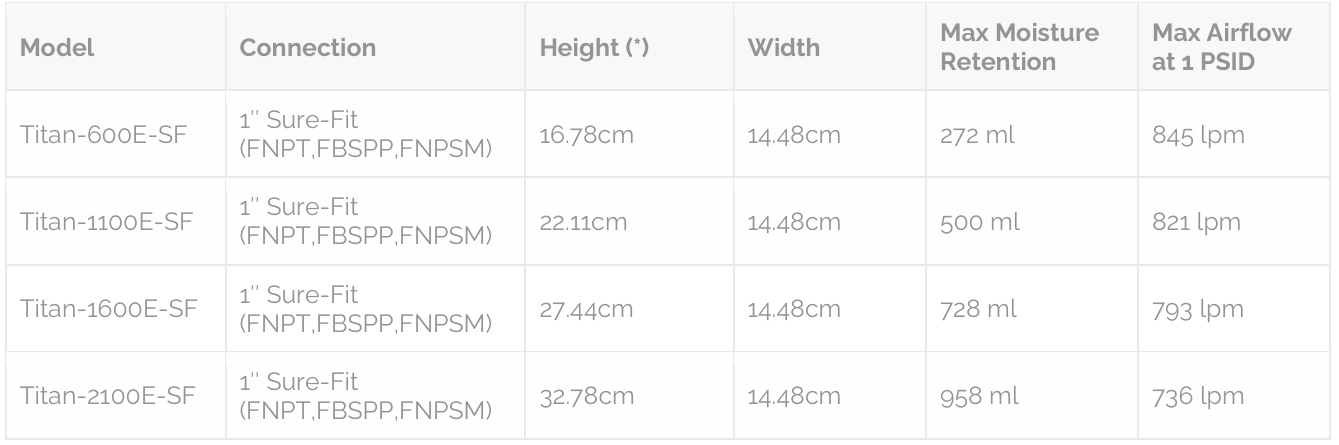

Titan SmartFlowTM PowerBreathersTM serie

*The height of the Titan SmartFlowTM PowerBreathersTM (Titan-XXXX-SF) stipulated in the table above includes adapter
